Automatic 300g 500g Sugar Spices Powder Bottle Filling Machine

Brand Name : CS

Model Number : CS

Certification : CE

Place of Origin : Guangdong,China

MOQ : 1

Price : Price negotiable

Payment Terms : T/T

Supply Ability : 100 units per month

Delivery Time : Delivery date negotiable

Packaging Details : Export wooden box packaging

packaging type : Barrel, Bottles, CANS

packaging material : Glass, metal, paper, Plastic

filling material : Powder

application : Chemical, Food, Machinery & Hardware

automatic grade : Automatic

warranty : 1 Year

filling accuracy : ±0.5%-2%

driven type : Electric

key selling points : High-accuracy

machinery test report : Provided

video outgoing-inspection : Provided

core components : motor, PLC

Contact Now

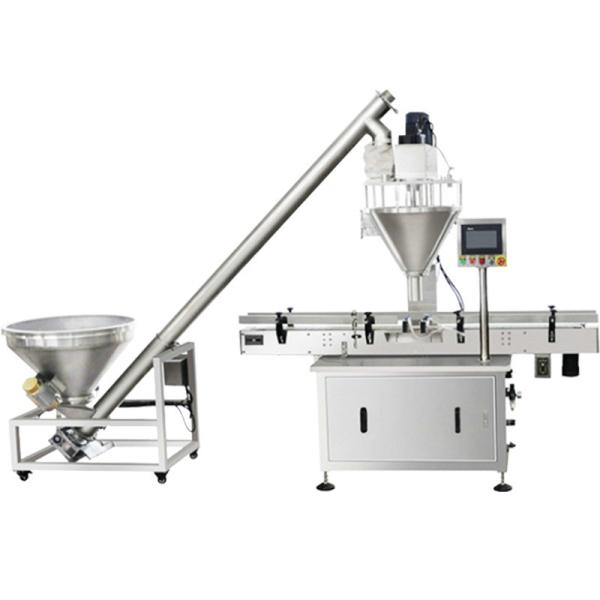

Automatic 300g 500g Sugar Spices Powder Bottle Filling Machine

Bottled powder filling machine is an automated equipment used to quantitatively fill powdered materials (such as milk powder, medicines, food additives, chemical raw materials, etc.) into bottles.
Automatic quantitative filling
Precise metering: Through screws, turntables or volumetric metering devices, high-precision quantitative filling of powders is achieved, and the error is usually controlled within the range of ±0.5%-2%.
Multi-specification adaptation: Supports filling requirements of different weights (such as 50g, 200g, 1kg, etc.), and can be flexibly switched by adjusting parameters or changing molds.
Automatic operation
Automatic bottle loading/unloading: Integrated conveyor belt or bottle unscrambler, automatically completes the conveying, positioning and output of finished products after filling of empty bottles.
Leak-proof design: The filling head adopts a sealed structure to avoid powder overflow, reduce waste and pollution.
Synchronous sealing: Some models can be linked with capping machines and aluminum foil sealing machines to achieve integrated filling-sealing operations.

Product Paramenters

Model	CS-2	CS-3
Metering Mode	Auger filling
Package Weight	10-500g (by changing the auger attachment)	50-5000g (by changing the auger attachment)
Package Accuracy	≤±0.5-2%(according to the packaging weight and product size)
Packing Speed	10-20times/min(according to the packaging weight and product size)
Power Supply	380V/220V 50Hz/60Hz
Hopper Volume	25L	50L
Total Power	1.5Kw	2Kw
Total Weight	180kg	300kg
Overall Dimensions	24008001850mm	24009001950mm
Interface	PLC control system, 5.7 inch touch screen
